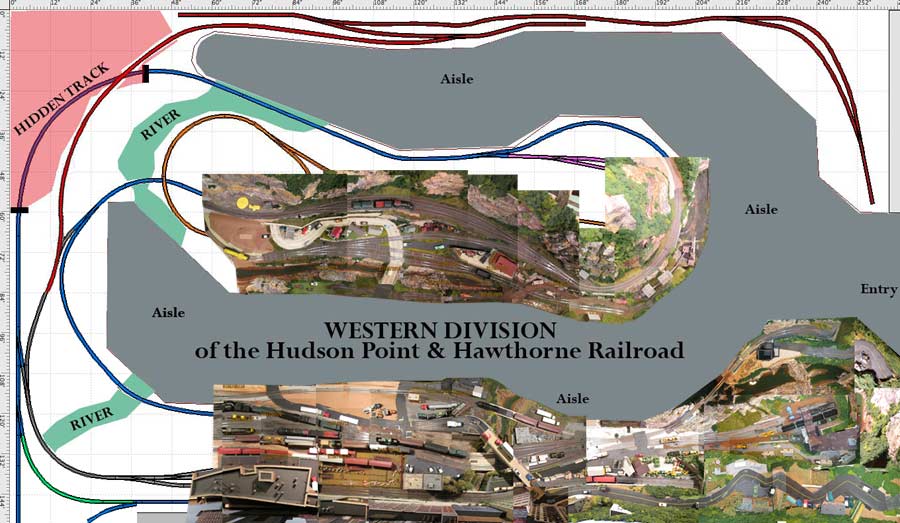

Track Plan for the Western Division of the Hudson Point and Hawthorne Railroad

Sorry but PHOTO OVERLAY IS OUT OF DATE. NOT SHOWN: Hinebaugh Junction, Clemons, Davis Landing

Blue track in this 12x22 ft room can be run as a continuous loop using the green curve in the lower left corner. Currently that is not used and the continuous running main line extends in to and out of a 12x30 ft room that is the Yard at Hawthorne.

The red track is a branch line that will not be built (dismantling and moving in 2018). Gold track at center is a branch line to a quarry. This line has its own staging yard for arriving and departing trains. A long passing siding (not shown) was added on the blue mainline that runs between these tracks.
